COMPOUND NPA004676

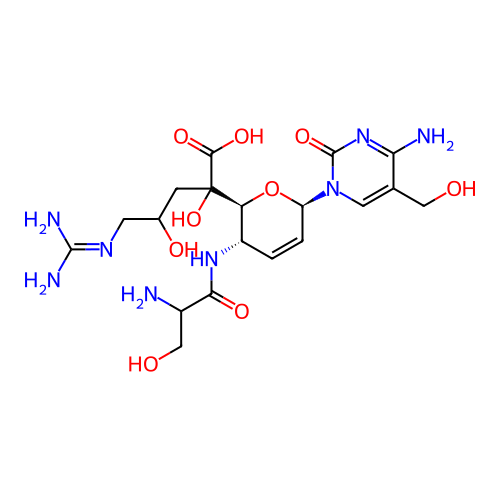

STRUCTURE

Image structure

EXPORT OPTIONS	PNG JSON SDF
PROJECT MOLECULE TO GLOBAL VIEW	See Global

EXTERNAL LINKS

PROPERTIES

NPAID	NPA004676
CLUSTER ID	2392
NODE ID	1881
NAME	Mildiomycin
FORMULA	C19H30N8O9
MOLECULAR WEIGHT (Da)	514.4960
ACCURATE MASS (Da)	514.2136
ORIGIN ORGANISM TYPE	Bacterium
ORIGIN GENUS	Streptoverticillium
ORIGIN SPECIES	rimofaciens (strain B-98891)
InChIKey	QKJJCZYFXJCKRX-AMYGDCFASA-N
InChI	InChI=1S/C19H30N8O9/c20-10(7-29)15(31)25-11-1-2-12(27-5-8(6-28)14(21)26-18(27)34)36-13(11)19(35,16(32)33)3-9(30)4-24-17(22)23/h1-2,5,9-13,28-30,35H,3-4,6-7,20H2,(H,25,31)(H,32,33)(H2,21,26,34)(H4,22,23,24)/t9?,10?,11-,12+,13-,19?/m0/s1
SMILES	C1=C[C@@H](O[C@@H]([C@H]1NC(=O)C(CO)N)C(CC(CN=C(N)N)O)(C(=O)O)O)N2C=C(C(=NC2=O)N)CO

ORIGINAL ISOLATION REFERENCE

CITATION	Harada, S; Mizuta, E; Kishi, T Structure of mildiomycin, a new antifungal nucleoside antibiotic Journal of the American Chemical Society 1978 100 (15) 4895-4897.
DOI	10.1021/ja00483a047	PMID	-

ORIGINAL ISOLATION TAXONOMY

RANK	NAME	DB LINK	NCBI
Domain	Bacteria	LPSN	2
Phylum	Actinobacteria	LPSN	201174
Class	Actinobacteria	LPSN	-
Order	Streptomycetales	LPSN	85011
Family	Streptomycetaceae	LPSN	2062
Genus	Streptoverticillium	LPSN	-

CLASSYFIRE

Show		Hide
DESCRIPTION	[[ getValue('description') ]]
KINGDOM	[[ getValue('kingdom') ]]
SUPER CLASS	[[ getValue('superclass') ]]
CLASS	[[ getValue('class') ]]
SUB CLASS	[[ getValue('subclass') ]]
MOLECULAR FRAMEWORK	[[ getValue('molecular_framework') ]]

NP CLASSIFIER

Show		Hide
SUPER CLASS	[[ getValue('superclass_results') ]]
CLASS	[[ getValue('class_results') ]]
PATHWAY	[[ getValue('pathway_results') ]]
IS GLYCOSIDE?	[[ getValue('isglycoside') ]]
