COMPOUND NPA002219

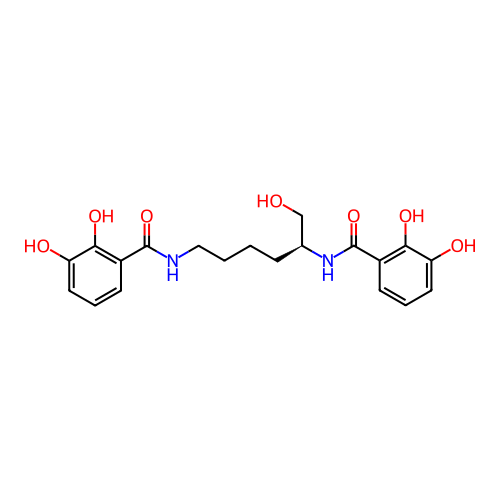

STRUCTURE

Image structure

EXPORT OPTIONS	PNG JSON SDF
PROJECT MOLECULE TO GLOBAL VIEW	See Global

EXTERNAL LINKS

PROPERTIES

NPAID	NPA002219
CLUSTER ID	34
NODE ID	33
NAME	Myxochelin A
FORMULA	C20H24N2O7
MOLECULAR WEIGHT (Da)	404.4190
ACCURATE MASS (Da)	404.1584
ORIGIN ORGANISM TYPE	Bacterium
ORIGIN GENUS	Angiococcus
ORIGIN SPECIES	disciformis (strain An d30)
InChIKey	WNBVGSNESTZACV-LBPRGKRZSA-N
InChI	InChI=1S/C20H24N2O7/c23-11-12(22-20(29)14-7-4-9-16(25)18(14)27)5-1-2-10-21-19(28)13-6-3-8-15(24)17(13)26/h3-4,6-9,12,23-27H,1-2,5,10-11H2,(H,21,28)(H,22,29)/t12-/m0/s1
SMILES	C1=CC(=C(C(=C1)O)O)C(=O)NCCCC[C@@H](CO)NC(=O)C2=C(C(=CC=C2)O)O

ORIGINAL ISOLATION REFERENCE

CITATION	Kunze, B; Bedorf, N; Kohl, W; Höfle, G; Reichenbach, H Myxochelin A, a new iron-chelating compound from Angiococcus disciformis (Myxobacterales). Production, isolation, physico-chemical and biological properties Journal of Antibiotics 1989 42 (1) 14-17.
DOI	10.7164/antibiotics.42.14	PMID	2493439

ORIGINAL ISOLATION TAXONOMY

RANK	NAME	DB LINK	NCBI
Domain	Bacteria	LPSN	2
Phylum	Proteobacteria	LPSN	1224
Class	Deltaproteobacteria	LPSN	28221
Order	Myxococcales	LPSN	29
Family	Archangiaceae	LPSN	39
Genus	Angiococcus	LPSN	-

CLASSYFIRE

Show		Hide
DESCRIPTION	[[ getValue('description') ]]
KINGDOM	[[ getValue('kingdom') ]]
SUPER CLASS	[[ getValue('superclass') ]]
CLASS	[[ getValue('class') ]]
SUB CLASS	[[ getValue('subclass') ]]
MOLECULAR FRAMEWORK	[[ getValue('molecular_framework') ]]

NP CLASSIFIER

Show		Hide
SUPER CLASS	[[ getValue('superclass_results') ]]
CLASS	[[ getValue('class_results') ]]
PATHWAY	[[ getValue('pathway_results') ]]
IS GLYCOSIDE?	[[ getValue('isglycoside') ]]
