COMPOUND NPA020789

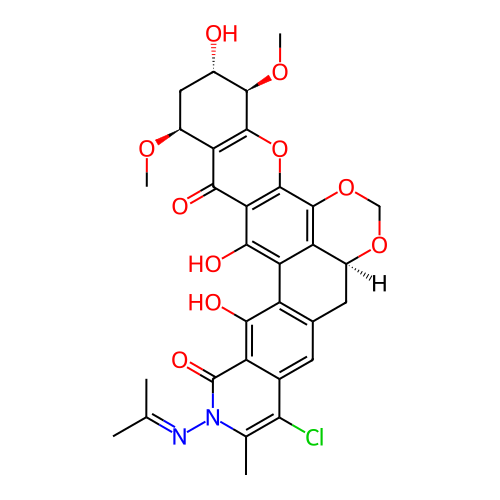

STRUCTURE

Image structure

EXPORT OPTIONS	PNG JSON SDF
PROJECT MOLECULE TO GLOBAL VIEW	See Global

EXTERNAL LINKS

PROPERTIES

NPAID	NPA020789
CLUSTER ID	1973
NODE ID	1588
NAME	Actinoplanone E
FORMULA	C31H29ClN2O10
MOLECULAR WEIGHT (Da)	625.0300
ACCURATE MASS (Da)	624.1511
ORIGIN ORGANISM TYPE	Bacterium
ORIGIN GENUS	Actinoplanes
ORIGIN SPECIES	sp. R-304
InChIKey	RXQNODYVXOZZIK-OSLIRNSNSA-N
InChI	InChI=1S/C31H29ClN2O10/c1-10(2)33-34-11(3)23(32)13-6-12-7-16-19-21(17(12)24(36)18(13)31(34)39)26(38)22-25(37)20-15(40-4)8-14(35)27(41-5)29(20)44-30(22)28(19)43-9-42-16/h6,14-16,27,35-36,38H,7-9H2,1-5H3/t14-,15-,16-,27+/m0/s1
SMILES	CC1=C(C2=CC3=C(C4=C(C5=C(C6=C4[C@H](C3)OCO6)OC7=C(C5=O)[C@H](C[C@@H]([C@H]7OC)O)OC)O)C(=C2C(=O)N1N=C(C)C)O)Cl

ORIGINAL ISOLATION REFERENCE

CITATION	Kobayashi K; Nishino C; Ohya J; Sato S; Mikawa T; Shiobara Y; Kodama M ACTINOPLANONES C, D, E, F AND G, NEW CYTOTOXIC POLYCYCLIC XANTHONES FROM ACTINOPLANES SP. Journal of Antibiotics 1988 41 (6) 741-750.
DOI	10.7164/antibiotics.41.741	PMID	3403368

ORIGINAL ISOLATION TAXONOMY

RANK	NAME	DB LINK	NCBI
Domain	Bacteria	LPSN	2
Phylum	Actinobacteria	LPSN	201174
Class	Actinobacteria	LPSN	-
Order	Micromonosporales	LPSN	85008
Family	Micromonosporaceae	LPSN	28056
Genus	Actinoplanes	LPSN	1865

CLASSYFIRE

Show		Hide
DESCRIPTION	[[ getValue('description') ]]
KINGDOM	[[ getValue('kingdom') ]]
SUPER CLASS	[[ getValue('superclass') ]]
CLASS	[[ getValue('class') ]]
SUB CLASS	[[ getValue('subclass') ]]
MOLECULAR FRAMEWORK	[[ getValue('molecular_framework') ]]

NP CLASSIFIER

Show		Hide
SUPER CLASS	[[ getValue('superclass_results') ]]
CLASS	[[ getValue('class_results') ]]
PATHWAY	[[ getValue('pathway_results') ]]
IS GLYCOSIDE?	[[ getValue('isglycoside') ]]
