COMPOUND NPA020010

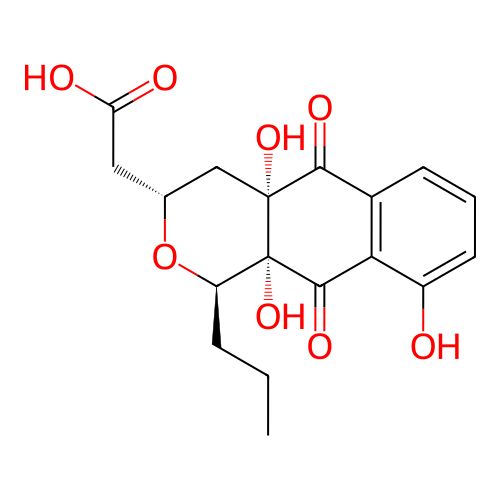

STRUCTURE

Image structure

EXPORT OPTIONS	PNG JSON SDF
PROJECT MOLECULE TO GLOBAL VIEW	See Global

EXTERNAL LINKS

PROPERTIES

NPAID	NPA020010
CLUSTER ID	814
NODE ID	707
NAME	Frenolicin D
FORMULA	C18H20O8
MOLECULAR WEIGHT (Da)	364.3500
ACCURATE MASS (Da)	364.1158
ORIGIN ORGANISM TYPE	Bacterium
ORIGIN GENUS	Streptomyces
ORIGIN SPECIES	sp. RM-4-15
InChIKey	XDYYASNFOIEXFT-KSVPUCKHSA-N
InChI	InChI=1S/C18H20O8/c1-2-4-12-18(25)16(23)14-10(5-3-6-11(14)19)15(22)17(18,24)8-9(26-12)7-13(20)21/h3,5-6,9,12,19,24-25H,2,4,7-8H2,1H3,(H,20,21)/t9-,12-,17-,18+/m1/s1
SMILES	CCC[C@@H]1[C@@]2(C(=O)C3=C(C=CC=C3O)C(=O)[C@@]2(C[C@H](O1)CC(=O)O)O)O

ORIGINAL ISOLATION REFERENCE

CITATION	Wang, Xiachang; Shaaban, Khaled A.; Elshahawi, Sherif I.; Ponomareva, Larissa V.; Sunkara, Manjula; Zhang, Yinan; Copley, Gregory C.; Hower, James C.; Morris, Andrew J.; Kharel, Madan K.; Thorson, Jon S. Frenolicins C-G, Pyranonaphthoquinones from streptomyces sp. RM-4-15 Journal of Natural Products 2013 76 (8) 1441-1447.
DOI	10.1021/np400231r	PMID	23944931

ORIGINAL ISOLATION TAXONOMY

RANK	NAME	DB LINK	NCBI
Domain	Bacteria	LPSN	2
Phylum	Actinobacteria	LPSN	201174
Class	Actinobacteria	LPSN	-
Order	Streptomycetales	LPSN	85011
Family	Streptomycetaceae	LPSN	2062
Genus	Streptomyces	LPSN	1883

CLASSYFIRE

Show		Hide
DESCRIPTION	[[ getValue('description') ]]
KINGDOM	[[ getValue('kingdom') ]]
SUPER CLASS	[[ getValue('superclass') ]]
CLASS	[[ getValue('class') ]]
SUB CLASS	[[ getValue('subclass') ]]
MOLECULAR FRAMEWORK	[[ getValue('molecular_framework') ]]

NP CLASSIFIER

Show		Hide
SUPER CLASS	[[ getValue('superclass_results') ]]
CLASS	[[ getValue('class_results') ]]
PATHWAY	[[ getValue('pathway_results') ]]
IS GLYCOSIDE?	[[ getValue('isglycoside') ]]
