Compounds

COMPOUND NPA008538

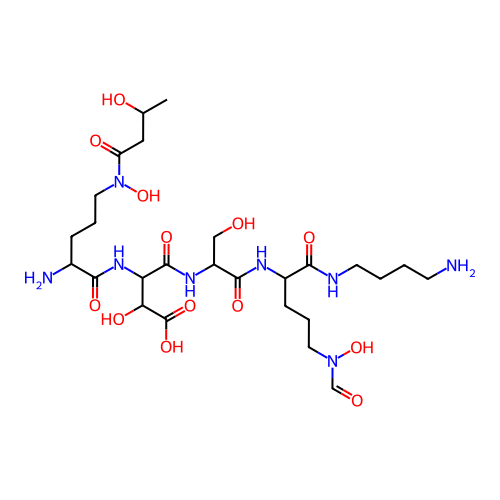

STRUCTURE
Image structure
EXPORT OPTIONS PNG JSON SDF
PROJECT MOLECULE TO GLOBAL VIEW See Global
EXTERNAL LINKS
mibig logo gnps logo npmrd logo unichem logo
PROPERTIES
NPAID NPA008538
CLUSTER ID 1582
NODE ID 1298
NAME Ornibactin C4
FORMULA C26H48N8O13
MOLECULAR WEIGHT (Da) 680.7130
ACCURATE MASS (Da) 680.3341
ORIGIN ORGANISM TYPE Bacterium
ORIGIN GENUS Pseudomonas
ORIGIN SPECIES tVV 69
InChIKey CODGHFHXEFKOMN-UHFFFAOYSA-N
InChI InChI=1S/C26H48N8O13/c1-15(37)12-19(38)34(47)11-4-6-16(28)22(40)32-20(21(39)26(44)45)25(43)31-18(13-35)24(42)30-17(7-5-10-33(46)14-36)23(41)29-9-3-2-8-27/h14-18,20-21,35,37,39,46-47H,2-13,27-28H2,1H3,(H,29,41)(H,30,42)(H,31,43)(H,32,40)(H,44,45)
SMILES CC(CC(=O)N(CCCC(C(=O)NC(C(C(=O)O)O)C(=O)NC(CO)C(=O)NC(CCCN(C=O)O)C(=O)NCCCCN)N)O)O
ORIGINAL ISOLATION REFERENCE
CITATION Stephan, Holger; Freund, Stefan; Meyer, Jean-Marie; Winkelmann, Günther; Jung, Günther Structure Elucidation of the Gallium-Ornibactin Complex by 2D-NMR Spectroscopy Liebigs Annalen der Chemie 1993 1993 (1) 43-48.
DOI 10.1002/jlac.199319930108 PMID 25855820
ORIGINAL ISOLATION TAXONOMY
RANK NAME DB LINK NCBI
Domain Bacteria LPSN 2
Phylum Proteobacteria LPSN 1224
Class Gammaproteobacteria LPSN 1236
Order Pseudomonadales LPSN 72274
Family Pseudomonadaceae LPSN 135621
Genus Pseudomonas LPSN 286
